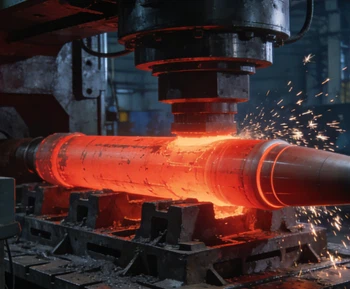

Lub missile casing forged thiab zoo li cas?
Hauv kev tsim cov foob pob hluav taws, lub forging ntawm lub foob pob hluav taws yog lub hauv paus tseem ceeb uas txiav txim siab nws qhov kev ua tau zoo. Titanium alloys, vim lawv cov khoom tshwj xeeb physicochemical, tau dhau los ua cov khoom siv rau cov foob pob hluav taws, thiab cov txheej txheem forging yog qhov tseem ceeb rau kev qhib lawv lub peev xwm ua tau zoo. Los ntawm kev xaiv cov khoom siv mus rau kev tswj hwm, txhua kauj ruam embodies cov tub rog kev lag luam kev ua haujlwm tsis tu ncua ntawm kev ua tau zoo thiab kev ntseeg siab.
Titanium Alloys: "Natural Darling" ntawm Missile Casings
Titanium alloys tsuas muaj 60% qhov ntom ntawm cov hlau, tseem muaj lub zog tshwj xeeb piv rau siab - lub zog steel. Qhov no txhais tau hais tias, rau tib lub zog, titanium alloy casings tuaj yeem txo qhov hnyav ntawm missile, nce load thiab ya davhlau ntau. Lawv qhov kub ntau yam ruaj khov (-253℃txog 600 degree) tso cai rau lawv tiv taus qhov kub siab uas tsim los ntawm kev sib txhuam huab cua thaum lub sij hawm siab - davhlau ceev thiab tsis txhob embrittlement nyob rau hauv qhov chaw txias heev. Tsis tas li ntawd, qhov ntom ntom oxide zaj duab xis tsim nyob rau saum npoo ntawm titanium alloys muab lawv zoo heev corrosion kuj, tswj cov txheej txheem kev ncaj ncees txawm nyob rau lub sij hawm ntev kev pab cuam nyob rau hauv hnyav ib puag ncig xws li av noo thiab ntsev tsuag. Siv TC4 (Ti-6Al-4V) titanium alloy ua piv txwv, cov khoom siv no, dav siv hauv cov cav hlau foob pob hluav taws, tuav lub zog tensile ntawm 618 MPa txawm nyob ntawm 400 degree, thiab nws lub zog qaug zog nce mus txog 70% -80% ntawm nws lub zog tensile, deb tshaj cov khoom siv hlau. Qhov no "kev sib xyaw ua ke ntawm kev nruj thiab yoog raws" ua rau cov titanium alloys yog qhov kev xaiv zoo tshaj plaws rau cov foob pob hluav taws, los ntawm lub taub hau mus rau hauv lub cav.
Cov txheej txheem Forging: "Golden Key" txhawm rau txhawm rau Titanium Alloy Performance
Forging titanium alloys tsis yog cov yas deformation nkaus xwb, tab sis cov cuab yeej siv dav siv nrog cov ntaub ntawv tshawb fawb, thermodynamics, thiab kev tswj xyuas qhov tseeb. Nws lub hom phiaj tseem ceeb yog txhawm rau txhim kho cov qauv ntawm cov khoom siv los ntawm kev tswj cov deformation kub,℃ntawm deformation, thiab deformation ceev, yog li txhim kho nws cov khoom siv kho tshuab.
Kev tswj qhov kub thiab txias yog tus ntsuj plig ntawm cov txheej txheem forging. Titanium alloys tsis tshua muaj siab rau qhov kub thiab txias, thiab lawv lub qhov rais forging kub yog feem ntau 40-50℃hauv qab ntawm theem hloov pauv kub. Yog tias qhov kub thiab txias dhau lawm, cov nplej yuav loj hlob sai, tsim cov qauv ntxhib Widmanstätten, ua rau txo qis hauv cov khoom yas; Yog tias qhov kub thiab txias qis dhau, qhov deformation kuj nce, yooj yim ua rau tawg. Lub advent ntawm isothermal forging technology tau muab ib tug revolutionary kev daws teeb meem rau titanium alloy forging. Los ntawm ib txhij ua kom sov cov tuag thiab billet rau lub hom phiaj kub thiab deforming lawv ntawm tsis tshua muaj strain nqi nyob rau hauv inert gas tiv thaiv, kev ua tau zoo degradation los ntawm kub poob yuav raug zam tau zoo. Piv txwv li, nyob rau hauv kev tsim ntawm ib tug bladed disks rau missile engine, isothermal forging technology muaj peev xwm ua tau precision forming nrog phab ntsa thicknesses ntawm tsuas yog 1.52-1.87 hli, thaum xyuas kom meej cov khoom nyob rau hauv ib tug superplastic lub xeev, ho txo txoj kev pheej hmoo ntawm tawg.
Qhov℃ntawm deformation yog lwm qhov tseem ceeb cuam tshuam rau kev ua haujlwm ntawm titanium alloy forgings. Thaum cov℃ntawm deformation tsawg dua 30%, cov qauv casting yog qhov nyuaj rau tawg, ua rau cov nplej ntxhib; Thaum lub℃ntawm deformation ntau tshaj 60%, cov nplej tau zoo refined, tsim ib tug sib xyaw qauv ntawm equiaxed -theem thiab -transformation microstructures. Cov qauv no combines siab zog nrog zoo toughness. Piv txwv li, nyob rau hauv forging ntawm TC4 titanium alloy, los ntawm kev tswj lub℃ntawm deformation ntawm 75% thiab 80%, lub anisotropy nyob rau hauv nws cov microstructure yuav txo tau, yog li txhim kho cov khoom ua hauj lwm qaug zog. Kev tswj tus nqi deformation yog qhov tseem ceeb sib npaug. Titanium alloys muaj thermal conductivity tsis zoo, thiab siab -ceev deformation tau yooj yim ua rau lub zos kub nce siab, ua rau kev ua haujlwm tsis zoo. Yog li ntawd, tus nqi deformation yuav tsum tau tswj nruj me ntsis thaum lub sij hawm forging los tiv thaiv qhov kub thiab txias ntawm qhov siab tshaj ntawm theem transformation kub. Piv txwv li, nyob rau hauv ntau-directional tuag forging, alternating loading nyob rau hauv ntsug thiab kab rov tav cov lus qhia yuav txo tau lub zog noj ntawm ib tug deformation thiab txo qhov cuam tshuam ntawm kub nce nyob rau hauv cov khoom.
Cov ntaub ntawv siv tau: Los ntawm chav kuaj mus rau Battlefield
Ua ib qho kev tsim ntawm lub tshuab foob pob hluav taws ua piv txwv, qhov ze ntawm - isothermal tuag forging txheej txheem siv TC4 titanium alloy tau ua haujlwm. Los ntawm kev tswj qhov kub thiab txias (930 degree), deformation℃(70%), thiab strain rate (5 × 10⁻⁴s⁻¹), lub casing tau ua tiav thiab raug tsim. Tom qab kev kho cua sov, lub forging tau ua tiav lub zog tensile ntawm 980MPa thiab elongation ntawm 12%, deb tshaj qhov tsim nyog. Qhov tseem ceeb tshaj, nws lub neej qaug zog tau nce los ntawm 30% piv rau cov txheej txheem ib txwm muaj, txhim kho lub foob pob hluav taws kev ntseeg tau zoo. Cov ntaub ntawv no qhia tau hais tias txhua qhov kev ua kom zoo tshaj plaws hauv titanium alloy forging txheej txheem tuaj yeem txhais ncaj qha rau hauv kev txhim kho ntau yam hauv kev ua haujlwm missile.
The Technological Moat of Military Enterprises
Rau cov tub rog kev lag luam, kev paub txog cov thev naus laus zis tseem ceeb ntawm titanium alloy forging tsis yog tsuas yog ib qho kev xaiv zoo los hloov mus rau cov qauv ntawm kev tiv thaiv lub teb chaws niaj hnub, tab sis kuj yog ib qho tseem ceeb hauv kev tuav cov lus txib siab ntawm siab - kawg manufacturing. Noj Baoji Juwei Titanium Kev Lag Luam ua piv txwv, los ntawm kev qhia thoob ntiaj teb qib siab isothermal forging cov cuab yeej thiab cov txheej txheem, nws tau ua tiav cov khoom loj ntawm TC4 titanium alloy forgings. Nws cov khoom siv dav siv hauv missiles, spacecraft, thiab aero- cav. Nws cov forgings tsis yog tsuas yog tswj hwm kev lag luam hauv tsev tab sis kuj tseem raug xa tawm mus rau qib siab -kawg kev lag luam hauv Tebchaws Europe thiab Amelikas, ua rau nws ua tus qauv kev lag luam hauv ntiaj teb titanium alloy forging teb. Qhov kev sib sau ntawm cov cuab yeej siv zog no tsis yog los ntawm kev tswj hwm huab cua ntawm cov txheej txheem cov ntsiab lus tab sis kuj los ntawm kev nkag siab zoo ntawm cov khoom siv. Piv txwv li, los ntawm kev kho tus nqi txias thaum lub sij hawm forging, qhov piv ntawm -theem rau -theem nyob rau hauv titanium alloy yuav tswj tau, yog li ua tiav qhov sib npaug ntawm lub zog thiab toughness; los ntawm optimizing pwm tsim, residual kev nyuaj siab nyob rau hauv lub forging yuav txo tau, kev txhim kho nws qaug zog kuj.
Yav tom ntej Outlook: Lub "Galactic Dej hiav txwv" ntawm Titanium Alloy Forging
Nrog rau kev txhim kho ntawm kev txiav- cov khoom siv ntug xws li riam phom hypersonic thiab rov siv tau lub dav hlau, qhov kev ua tau zoo ntawm titanium alloy forgings tau dhau los ua nruj dua. Nyob rau hauv lub neej yav tom ntej, titanium alloy forging tshuab yuav txhim kho rau ultra-precision forming, customized khoom, thiab ntsuab manufacturing. Ultra-precision forming thev naus laus zis yuav ua tiav cov phab ntsa tuab dua thiab cov txheej txheem nyuaj dua hauv kev sib tsoo los ntawm ntau- kev taw qhia kev thauj khoom pwm tsim thiab digital tswj qhov kub thiab txias; Cov khoom siv kho kom haum yuav tso cai rau ntawm -xav tau customization ntawm titanium alloy lub zog, toughness, thiab qaug zog ua haujlwm los ntawm kev kho cov txheej txheem forging; thiab kev tsim ntsuab yuav tsim qis-zog-siv thiab qis-emission forging txheej txheem, txhawb kev txhim kho kom ruaj khov ntawm titanium alloy forging. Cov qauv no yuav tsis tsuas yog tsav cov kev sib tw ntxiv hauv titanium alloy forging thev naus laus zis tab sis kuj tseem muab cov peev txheej tshiab rau leaps hauv missile kev ua tau zoo.
Titanium alloy forging thev naus laus zis tau hloov kho qhov kev ua tau zoo ntawm cov cuaj luaj niaj hnub. Nws lub teeb yuag, siab -lub zog, thiab corrosion- cov khoom tiv thaiv tsis yog tsuas yog txhim kho kev nkag mus thiab muaj sia nyob ntawm cov cuaj luaj tab sis kuj tau tsim cov khoom siv hauv paus rau kev txhim kho kev txiav yav tom ntej - cov cuab yeej ntug xws li riam phom hypersonic thiab rov siv tau lub dav hlau. Rau cov tub rog kev lag luam, kev nqis peev hauv titanium alloy forging thev naus laus zis tsis yog tsuas yog kev xaiv xaiv los ua kom nrawm nrog cov qauv ntawm kev tiv thaiv lub teb chaws niaj hnub, tab sis kuj yog ib qho tseem ceeb hauv kev tuav cov lus txib siab ntawm siab - kawg kev tsim khoom. Hauv kev sib tw thev naus laus zis no, leej twg ua tiav cov txheej txheem tseem ceeb ntawm titanium alloy forging yuav tau txais txiaj ntsig zoo nyob rau yav tom ntej ntawm kev ua tub rog thev naus laus zis, tsim kom muaj "titanium shield" rau lub teb chaws ruaj ntseg thiab kev loj hlob.
