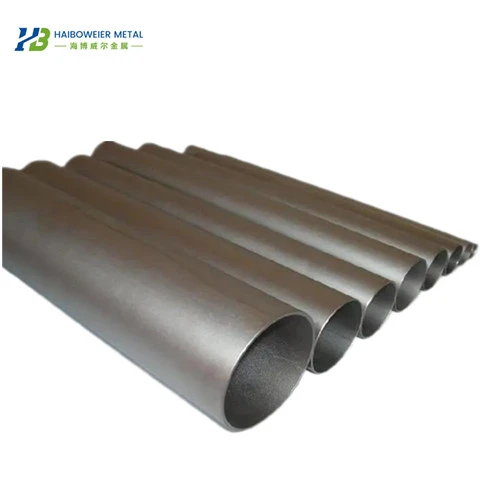

Ti 6Al 4VTitanium welded yeeb nkab
Peb lub tuam txhab tsim cov titanium zoo welded kav uas ua tau raws li cov qauv kev lag luam siab tshaj plaws. Peb muaj cov txheej txheem tsim khoom hauv lub xeev uas siv cov thev naus laus zis tshiab los xyuas kom meej qhov zoo thiab qhov tseeb ntawm txhua qhov ntawm peb cov raj.
Khoom Taw qhia
Titanium welded kav yog welded los ntawm txias dov coils. Lawv muaj cov phab ntsa tuab tuab, zoo concentricity, zoo smoothness, thiab tsis yooj yim rau scaling nyob rau hauv cov kav dej. Tshwj xeeb tshaj yog rau nyias-walled titanium raj, cov kev cai yuav tsis tau raws li tag nrho cov seamless dov txheej txheem.
Khoom npe: titanium welded yeeb nkab
Qhov chaw ntawm Keeb Kwm: Baoji, Shaanxi
Khoom siv: Ti 6Al 4V, Ti-0.2Pd, Ti 0.3Mo 0.8Ni, Ti 3Al 2.5V, Ti 6Al 4V ELI
Cov Qauv: ASTM B861.ASTM B862, ASTM B337, ASTM B338, ASTM F136, ASTM F67
Specifications: Welded yeeb nkab (M xeev) Ф ({{0}}}) x (05-12.0) x L (raws li tus neeg yuav tsum tau muaj)
Txhua yam khoom tuaj yeem ua tiav thiab kho tau!
Muaj ntshiab titanium yeeb nkab vuam txheej txheem tsis
|
cev Specification (mm) |
Vuam hlau diam (mm) |
vuam tam sim no (A) |
arc Qhov hluav taws xob (V) |
Tungsten electrodediameter (mm) |
Argon ntws (L / min) |
nruab nrab txheej kub (degree) |
||
|
nozzle |
Drag hood |
cev |
||||||
|
φ57×4 |
φ2-2.4 |
60 - 85 |
12-14 |
φ2.5 |
12-15 |
25 -30 |
8 -15 |
Tsawg dua los yog sib npaug li 200 |
|
φ89×5 |
φ2-2.4 |
60 - 85 |
12-14 |
φ2.5 |
12-15 |
25 -30 |
8-15 |
Tsawg dua los yog sib npaug li 200 |
Titanium Yeeb Nkab Xim Txheej Txheem
|
Weld nto xim |
tiv thaiv nyhuv |
zoo |
|
Nyiaj dawb (metallic luster) |
zoo heev |
tsim nyog |
|
Golden yellow (xws li xim hlau) |
zoo |
|
|
Ntshav (metallic luster) |
Tsawg kub oxidation, weld nto paug |
|
|
Xiav (metallic luster) |
Oxidation ntawm qhov kub thiab txias, muaj kuab paug loj heev, kev ua haujlwm degradation |
Tsis tsim nyog |
|
grey tsaus |
Kev tiv thaiv tsis zoo, muaj kuab paug loj |
|
|
tawm dawb |
||
|
daj dawb |
Khoom Description
|
QIB |
Fe |
C |
N |
H |
0 |
AL |
V |
Pd |
Ni |
Mo |
Ti |
|
QIB 1 |
0.2 |
0.08 |
0.03 |
0.015 |
0.18 |
|
|
Tshuav |
|||
|
QIB 2 |
0.3 |
0.08 |
0.03 |
0.015 |
0.25 |
Tshuav |
|||||
|
QIB 5 |
0.4 |
0.08 |
0.05 |
0.015 |
0.2 |
5.5~6.75 |
3.5~4.5 |
Tshuav |
|||
|
QIB 7 |
0.3 |
0.08 |
0.03 |
0.015 |
0.25 |
|
0.12~0.25 |
|
Tshuav |
||
|
QIB 12 |
0.3 |
0.08 |
0.03 |
0.015 |
0.25 |
|
0.6~0.9 |
0.2~0.4 |
Tshuav |
||
Peb cov tubing muaj nyob rau hauv ntau qhov ntau thiab tsawg thiab specifications rau ntau yam kev lag luam xws li aerospace, tshuaj ua, khoom siv kho mob, thiab roj thiab roj ntau lawm. Txawm hais tias koj xav tau cov kav dej me me lossis loj, cov kav dej hnyav, peb tuaj yeem muab cov kev cai daws teeb meem kom tau raws li koj qhov kev xav tau.
Peb txaus siab rau peb tus kheej ntawm kev tswj xyuas kev ua tau zoo uas ua kom txhua lub raj peb tsim tau raws li cov qauv kev lag luam siab tshaj plaws. Peb ua qhov kev tshuaj xyuas qhov muag, eddy tam sim no kuaj thiab lwm yam tsis muaj kev puas tsuaj los xyuas qhov zoo ntawm cov hlab. Peb cov raj kuj tseem raug kuaj xyuas cov tshuaj lom neeg thiab lub cev kom ntseeg tau tias lawv muaj kev nyab xeeb, ruaj khov thiab txhim khu kev qha.
