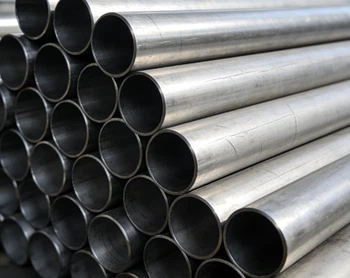

Vim li cas titanium raj siv hauv aircraft hydraulics?
Thaum lub dav hlau neeg nrog caij hla huab cua, nce saum ntuj ntawm 900 mais ib teev, kev ua haujlwm ruaj khov ntawm nws cov txheej txheem hydraulic tau txais kev txhawb nqa los ntawm lub raj zoo li cov hlau zoo tib yam li - titanium raj. Cov khoom no, tsuas yog ob peb centimeters nyob rau hauv txoj kab uas hla, yog ntsiag to rewriting keeb kwm ntawm cov ntaub ntawv nyob rau hauv lub aviation kev lag luam nrog nws cov kev ua tau zoo nyob rau hauv cov nqe lus ntawm lub teeb yuag, corrosion kuj, thiab siab kub kuj. Los ntawm Boeing 787 mus rau Airbus A380, lub ntiaj teb cov qauv dav hlau saum toj kawg nkaus tau xaiv ib qho kev xaiv titanium raj ua lub hauv paus tseem ceeb ntawm lawv cov tshuab hydraulic. Dab tsi technological secrets nyob tom qab no?
Lub teeb yuag kiv puag ncig: Cov khoom siv khawv koob rau "Slimming Down" Aircraft
Hauv kev lag luam aviation, txhua kilogram ntawm qhov hnyav txo txhais tau tias txuag tons ntawm roj txhua xyoo. Cov tshuab hydraulic ib txwm siv feem ntau siv cov hlau tsis muaj steel lossis tooj liab alloy tubing, tab sis cov ntaub ntawv no muaj qhov txwv tsis pub muaj zog ntawm lub zog - rau - qhov hnyav piv. Qhov tshwm sim ntawm titanium raj tau tawg tag nrho qhov kev kaw no - nws qhov ceev tsuas yog 57% ntawm cov hlau, tab sis nws muab qhov sib piv tensile zog. Noj hom tshiab ntawm cov neeg nrog caij dav hlau ua piv txwv, hloov cov kav dej hydraulic nrog titanium alloys txo qhov hnyav tag nrho los ntawm kwv yees li 120 kilograms, sib npaug rau txuag cov dav hlau tshaj $ 200,000 hauv cov nqi roj txhua xyoo. Qhov "qhov hnyav txo thiab txhim kho kev ua tau zoo" khawv koob no tau ua rau cov kav dej titanium yog "cov khoom kub" nyob rau hauv lub qhov muag ntawm aerospace engineers.
Corrosion Resistance Huab tais: Cov riam phom zais cia rau kev kov yeej ib puag ncig huab cua
Aircraft hydraulic systems tau raug cuam tshuam rau qhov chaw hnyav xws li av noo, tshuaj tsuag ntsev, thiab tshuaj lom neeg. Cov kav dej niaj hnub feem ntau pom muaj kev xeb loj heev hauv 3-5 xyoos. Titanium cov kav dej, nrog rau lawv qhov tshwj xeeb oxide zaj duab xis tiv thaiv mechanism, ua rau muaj kev xav tsis thoob corrosion: tom qab txuas ntxiv rau hauv 3.5% sodium chloride tov rau 4000 teev, tsis muaj cov cim qhia ntawm corrosion, ntau dua peb zaug ntawm corrosion kuj ntawm 316 stainless hlau. Cov yam ntxwv no txuas ntxiv kev saib xyuas lub voj voog ntawm titanium yeeb nkab hydraulic rau ntau tshaj 15 xyoo, txo cov nqi khiav lag luam hauv dav hlau. Qhov tseem ceeb tshaj, cov kav dej titanium tsis tsim cov khib nyiab hlau vim yog corrosion, tshem tawm cov kev pheej hmoo ntawm hydraulic system paug ntawm qhov chaw thiab tsim cov kab kawg ntawm kev tiv thaiv kev nyab xeeb ntawm kev ya davhlau.
Tus Vaj Ntxwv ntawm Kev Tiv Thaiv Kev Nyuaj Siab: Qhov Kev Xaiv Qhov Kawg rau Kev Ua Haujlwm Zoo Tshaj Plaws
Niaj hnub nimno neeg nrog caij dav hlau hydraulic tshuab ua haujlwm ntawm qhov siab tshaj 28 MPa, sib npaug rau cov kabmob 280 kg ntawm qhov hnyav ntawm thaj tsam ntawm tus ntiv tes. Titanium tubing, los ntawm nws qhov tshwj xeeb + dual -theem microstructure tsim, tuav lub zog siab thaum muaj cov tawv tawv zoo heev. Ib yam ntawm cov titanium alloy tubing nthuav tawm lub zog tensile hloov tsis ntau tshaj 5% nyob rau hauv qhov kub ntawm -50℃txog 350 degree, deb tshaj rau cov ntaub ntawv aluminium alloy. Qhov no "tsis muaj kev cuam tshuam los ntawm qhov txias lossis cua sov" tus yam ntxwv tso cai rau titanium tubing tuaj yeem tiv taus ob qho tib si qhov kub thiab txias ntawm lub tshuab cua txias, ua rau nws yog "txhua huab cua ua rog" rau cov tshuab hydraulic.
Tus nqi zais: Qhov System Optimization dhau ntawm cov khoom nws tus kheej
Daim ntawv thov ntawm titanium tubing coj tsis tau tsuas yog kev txhim kho kev ua tau zoo rau ib tug neeg lub Cheebtsam tab sis kuj revolutionary optimization rau tag nrho cov hydraulic system. Nws cov thermal conductivity tsawg txo cov roj hydraulic kub hloov pauv, txhim kho cov lus teb ceev los ntawm 15%; nws zoo meej compatibility nrog carbon fiber composites daws cov teeb meem ntawm kev sib txuas cov ntaub ntawv sib txawv; thiab nws cov qauv tsim phab ntsa du txo cov kua dej los ntawm 20%, ntxiv txhim kho kev ua haujlwm zoo. Cov kev txhim kho me me zoo li no, thaum sib xyaw ua ke, thaum kawg txhais ua qhov tseem ceeb hauv kev ua haujlwm dav hlau tag nrho.
Lub neej yav tom ntej nyob ntawm no: Titanium Tubes Usher nyob rau hauv ib tug Tshiab Era ntawm Aviation
Los ntawm nws cov ntawv thov kev pom thawj zaug hauv cov tub rog dav hlau mus rau nws cov xwm txheej tam sim no raws li cov khoom siv hauv kev lag luam dav hlau, titanium hlab tau ua pov thawj lawv cov nqi tsis tuaj yeem hloov tau. Kev tawg hauv kev tsim cov thev naus laus zis xws li 3D luam ntawv thiab superplastic forming tau txo cov nqi tsim khoom ntawm titanium raj los ntawm 40%, tshem tawm txoj hauv kev rau lawv daim ntawv thov loj -. Nws yog qhov pom tau tias titanium raj yuav txuas ntxiv ua lub luag haujlwm tseem ceeb hauv kev txiav - ntug teb xws li tom ntej - tiam supersonic neeg caij dav hlau thiab hluav taws xob ntsug tawm thiab tsaws (eVTOL) dav hlau, txhawb nqa kev lag luam aviation mus rau qhov sib dua, muaj zog dua, thiab muaj kev nyab xeeb yav tom ntej.
Xav txog tej yam cov hlab nyiaj uas txuas ntawm lub tis thiab lub fuselage los ntawm lub porthole-lawv nyob ntsiag to tiv thaiv txhua qhov kev nyab xeeb thiab tsaws nrog lub zog tshwj xeeb thiab lub teeb ntawm titanium. Cov hlab no, tsuas yog ob peb centimeters nyob rau hauv txoj kab uas hla, nqa tsis tau tsuas yog cov ndlwg ntawm hydraulic kua, tab sis kuj tib neeg lub relentless caum caum ntawm cov kev txwv ntawm lub davhlau. Nyob rau hauv keeb kwm epic ntawm aviation cov ntaub ntawv evolution, titanium raj twb tau sau lawv tus kheej glorious tshooj.
